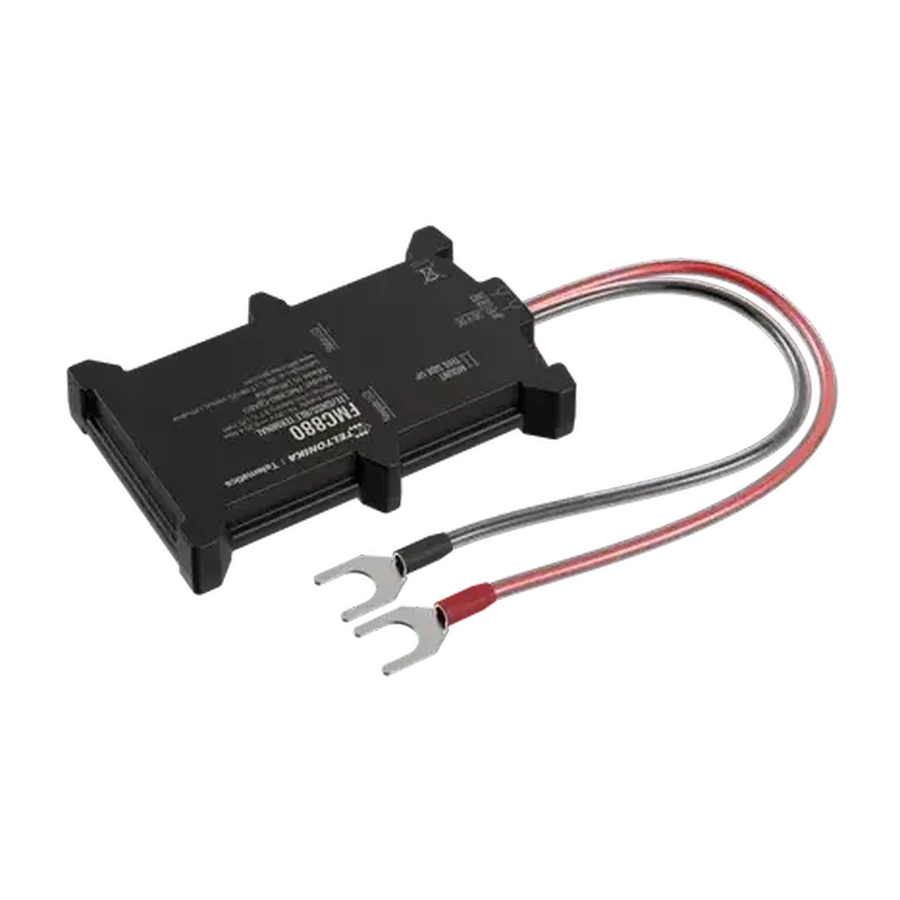

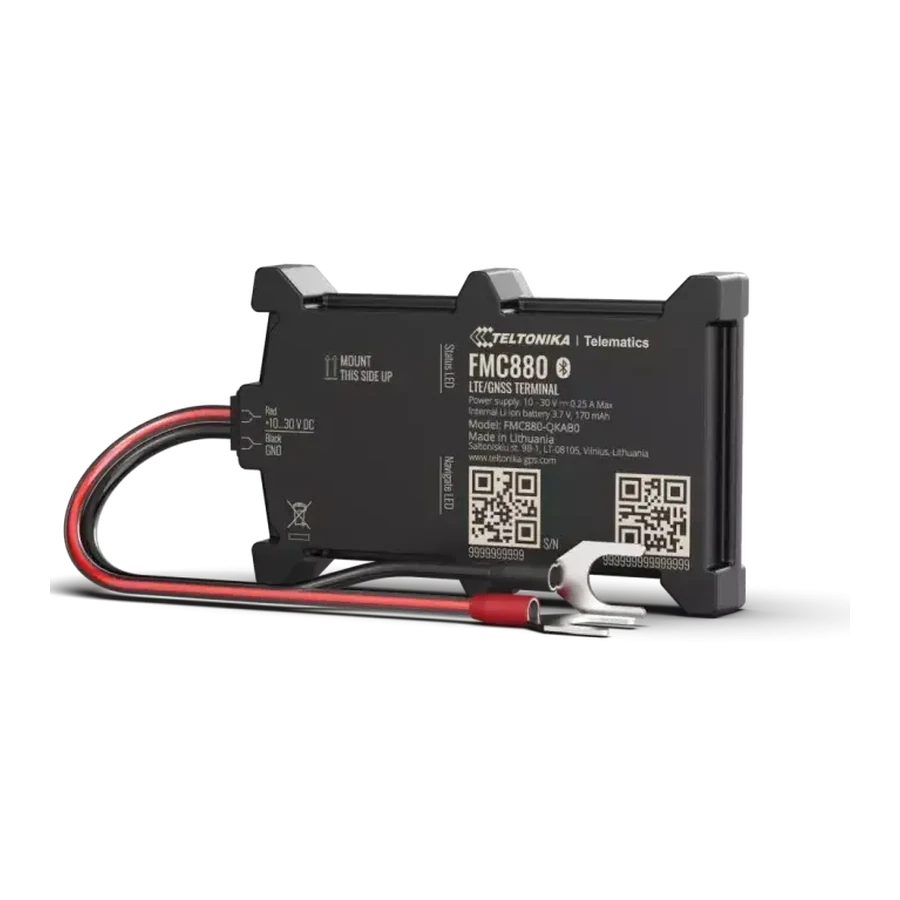

Teltonika FMC880 – Tracker GPS 4G LTE

The Teltonika FMC880 is an advanced GPS tracker designed for efficient vehicle and fleet management. Featuring 4G LTE Cat 1 connectivity, Bluetooth LE support, and a dual-band GNSS receiver (L1 & L5), it provides ultra-precise real-time tracking. Ideal for courier services, car rental companies, and fleet managers, this device ensures reliable and secure control of your assets.

Quick installation and easy to use

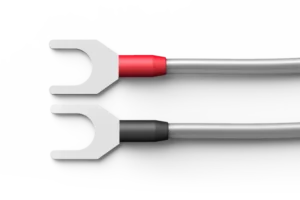

Thanks to its simplified mounting system with a U-type cable, the FMC880 can be installed in under 5 minutes on a car battery, without requiring complex tools or technical expertise.

Durability and Reliability

Its IP65-certified housing ensures optimal resistance to weather conditions, dust, and water splashes, guaranteeing reliable operation even in harsh environments.

Ultra-Precise GPS Tracking and Intelligent Detection

The dual-band GNSS receiver (L1 & L5) delivers positioning accuracy of less than 1 meter, ideal for applications requiring high-precision geolocation. Additionally, the FMC880 integrates smart sensors capable of detecting collisions, towing, disconnection, or aggressive driving.

Advanced Connectivity & Bluetooth Compatibility

Built-in Bluetooth Low Energy (BLE) allows connection to external sensors to measure temperature, humidity, or detect magnets and movement. This flexibility extends the use cases of the FMC880 across various industries.

Updates and Management

The FMC880 supports updates via FOTA Web, Bluetooth, or USB, enabling simplified maintenance and efficient remote management.

Technical Specifications

Technology & Connectivity

• Supported networks: 4G LTE Cat 1, GSM, GPRS, GNSS, Bluetooth

• LTE bands (4G Cat 1):

  • FMC880-QJAB0: B1/B3/B5/B7/B8/B20/B28

  • FMC880-QKAB0: B2/B3/B4/B5/B7/B8/B28/B66

• GSM bands (2G): B2/B3/B5/B8

• Bluetooth: 4.0 + LE, compatible with external sensors (temperature, humidity, motion)

• Data transfer:

  • LTE FDD: up to 10 Mbps (DL) / 5 Mbps (UL)

  • GSM GPRS: up to 85.6 Kbps (DL/UL)

• Supported protocols: TCP, UDP, TLS, EGTS, MQTT

• Updates and configuration: FOTA Web, USB, Bluetooth, GPRS, SMS

GPS & GNSS Accuracy

• Dual-band GNSS receiver:

  • L1: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS

  • L5: GPS, GALILEO, BEIDOU

• Channels: L1 – 75 channels | L5 – 60 channels

• Position accuracy: < 1 meter CEP

• Speed accuracy: < 0.1 m/s (±15% error)

• GNSS sensitivity: -165 dBM

• Start times:

  • Hot start: < 1s

  • Warm start: < 24s

  • Cold start: < 35s

Interface & Connectivity

• GNSS antenna: High-gain internal

• Cellular antenna: High-gain internal

• SIM slot: Micro-SIM

• USB port: Micro-USB 2.0

• LED indicators: 2 status LEDs

Power Supply & Autonomy

• Input voltage: 10–30V DC (with overvoltage and reverse polarity protection)

• Backup battery: Li-Ion 170 mAh, 3.7V (0.63 Wh)

• Internal fuse: 3A, 125V

Sensors & Smart Detection

• Built-in sensors: Accelerometer

• Advanced detection features:

  • Collision detection

  • Towing detection

  • Overspeed detection

  • Eco driving monitoring

  • Jamming detection

  • Power disconnection detection

  • Geofencing (manual & automatic)

  • GNSS-based fuel counter

  • Trip and route tracking

Sleep Modes

• GPS Sleep

• Online Deep Sleep

• Ultra-Deep Sleep

Environmental Resistance

• Protection rating: IP65 (waterproof, shock- and dust-resistant)

• Operating temperature:

  • With battery: 0°C to +40°C

  • Without battery: -40°C to +85°C

• Storage temperature:

  • With battery: -20°C to +45°C

  • Without battery: -40°C to +85°C

• Operating humidity: 5% to 95% (non-condensing)

Certifications & Compliance

• FMC880-QJAB0: CE/RED, E-Mark, RCM, REACH, RoHS

• FMC880-QKAB0: Anatel, REACH, RoHS

Why choose the Teltonika FMC880?

Whether you’re a fleet manager, a vehicle rental company, or a transportation professional, the FMC880 is a reliable, easy-to-install, and high-performance solution for ensuring accurate and secure tracking of your assets.

? Order it today to optimize your fleet management! ?
