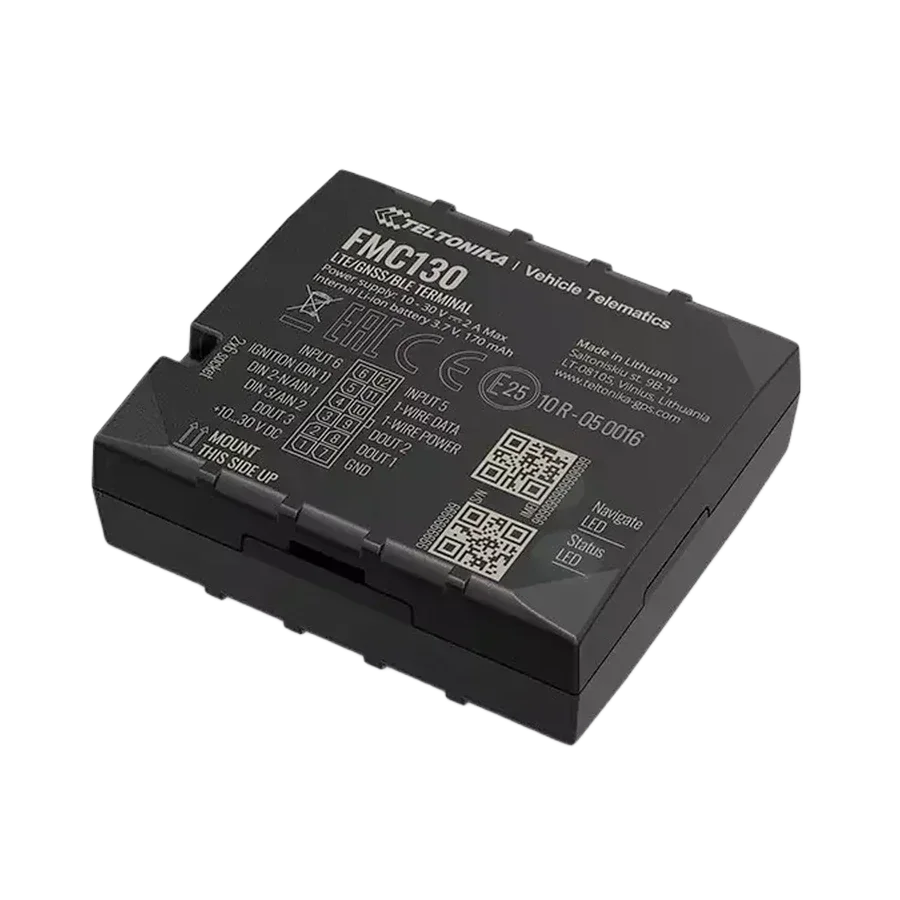

Teltonika FMC130 — GPS Tracker

Teltonika FMC130 is an advanced GPS tracker with 4G LTE Cat 1 technology, offering extensive network coverage and compatibility with 3G and 2G. Designed for efficient fleet management, it features internal GNSS and LTE antennas, configurable inputs (digital, analog, negative, and impulse), three digital outputs, Bluetooth® 4.0 LE connectivity, and an internal backup battery. Thanks to its flexibility, the FMC130 is ideal for monitoring various types of vehicles, including heavy-duty trucks, construction machinery, and agricultural equipment.

Detailed Technical Specifications:

• Module:
  • Name: MeiG SLM320-E1/E2 or SLM320-LA with Teltonika TM2500
  • Technology: LTE Cat 1/3G/2G/GNSS/Bluetooth® LE
• GNSS:
  • Supported systems: GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
  • Channels: 33 tracking, 99 acquisition
  • Tracking sensitivity: -165 dBm
  • Positioning accuracy: < 2.5 m CEP
  • Start times: Hot < 1 s, Warm < 25 s, Cold < 35 s
• Cellular:
  • Technology: LTE Cat 1, UMTS, GSM
  • 2G Bands: B2/B3/B5/B8
  • 3G Bands: B1/B2/B5/B8
  • 4G LTE Bands: vary by model (e.g., B1/B3/B5/B7/B8/B20 for FMC130-ME1)
  • Data transmission: LTE FDD up to 10 Mbps (DL) / 5 Mbps (UL), LTE TDD up to 8 Mbps (DL) / 2 Mbps (UL), GSM GPRS up to 85.6 kbps (DL/UL)
• Power:
  • Input voltage range: 10–30 V DC with overvoltage and reverse polarity protection
  • Internal backup battery: 170 mAh Li-ion, 3.7 V (0.63 Wh)
  • Power consumption: deep sleep <3 mA @ 12 V, nominal without load <33 mA @ 12 V, max full load <250 mA @ 12 V
• Bluetooth®:
  • Version: 4.0 + LE
  • Supported devices: temperature and humidity sensors, OBDII dongle, Inateck barcode scanner, universal BLE sensors
• Physical Characteristics:
  • Dimensions: 65 x 56.6 x 20.6 mm
  • Weight: 61 g
• Operating Environment:
  • Operating temperature (no battery): -20°C to +85°C
  • Storage temperature (no battery): -20°C to +85°C
  • Operating temperature (with battery): -20°C to +40°C
  • Storage temperature (with battery): -20°C to +45°C
  • Operating humidity: 5% to 95% non-condensing
  • Ingress protection rating: IP41
• Interfaces:
  • Digital inputs: 3
  • Negative input: 1 (digital input 2)
  • Impulse inputs: 2 (digital inputs 1 and 2)
  • Digital outputs: 3
  • Analog inputs: 2
  • CAN adapter input: 1
  • 1-Wire: 1
  • GNSS antenna: internal high-gain
  • Cellular antenna: internal high-gain
  • USB: Micro-USB 2.0
  • LED indicators: 2 status LEDs
  • SIM card: Micro-SIM or eSIM
  • Memory: 128 MB internal flash

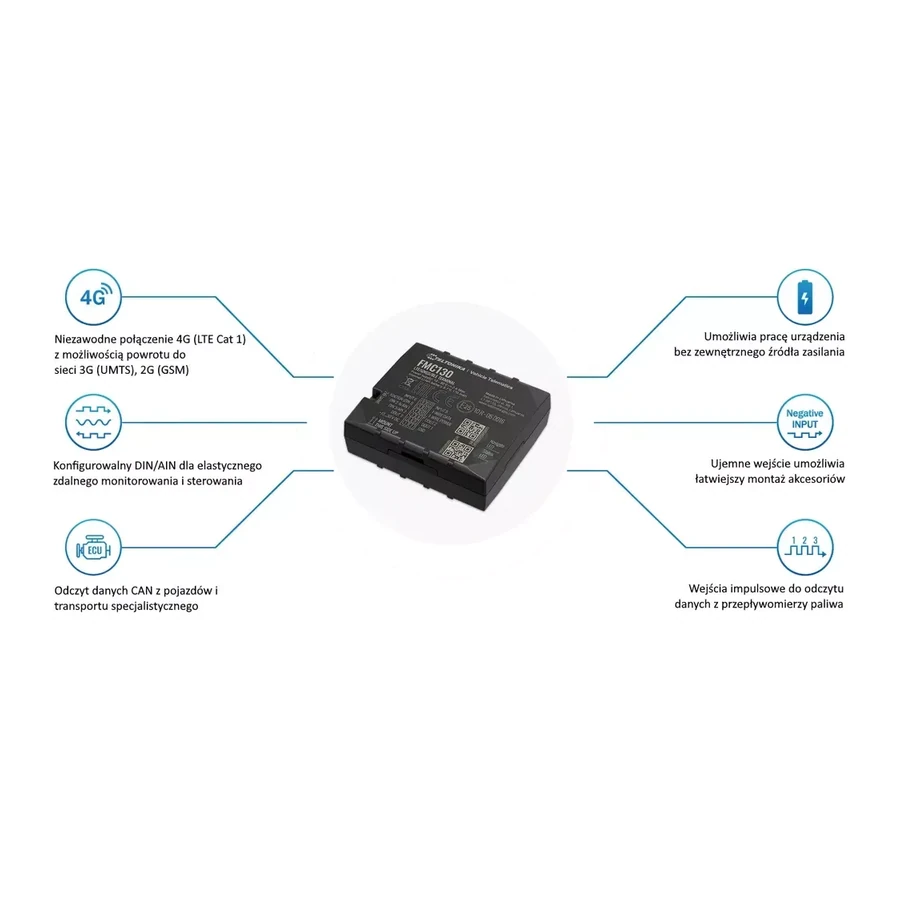

Advantages:

• Advanced Remote Monitoring: enables remote engine blocking and provides various fleet control measures.
• CAN Adapter Compatibility: reads data such as fuel level, odometer, engine RPM, and temperature from various vehicles and machines.
• Precise Fuel Consumption Control: impulse input for data reading.
