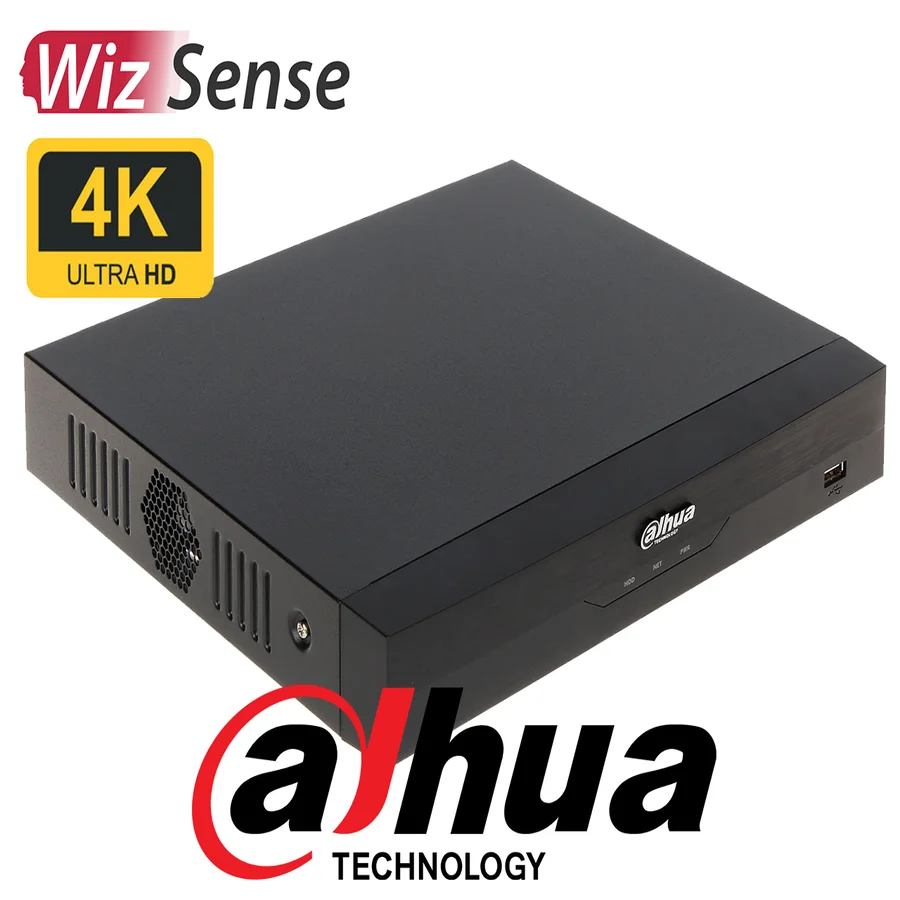

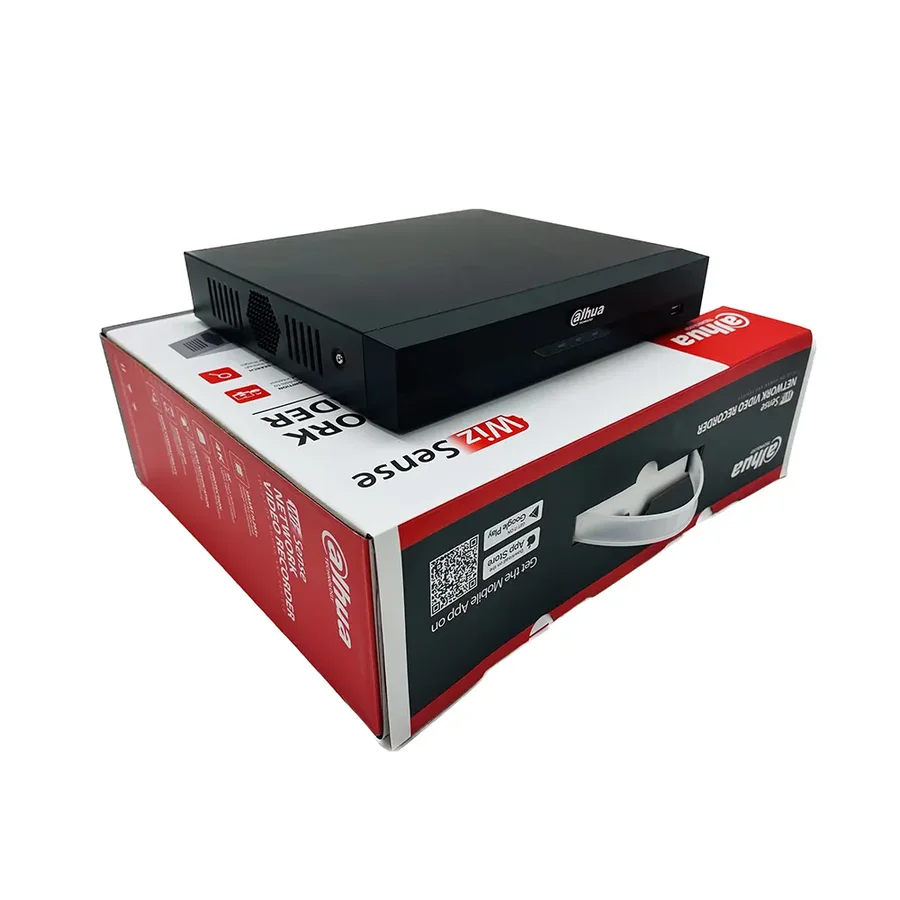

WizSense IP 8-channel 4K H.265+ 16 MP digital video recorder, 8 PoE ports – Dahua
Original price was: 420,00 €.390,00 €Current price is: 390,00 €.
WizSense 8-channel 4K ULTRA-HD surveillance video recorder with 8 IEEE802.3at/af PoE ports, 256 Mbps AI-free bandwidth, 180 Mbps AI-enabled bandwidth, Smart H.265+, HDMI up to 4K, VGA, ONVIF and Android iOS compatible, supports 1 x 16 TB SATA hard drive, 2 x USB, video analysis.
Available on backorder
Technical data sheet
Model: DVR | NVR4108HS-8P-EI |
SYSTÈME | |
Main processor | Industrial-grade processor |
Operating system | Embedded LINUX |
Operating interface | Web, local graphical interface |
AU | |
AI by Recorder | Face detection, facial recognition, perimeter protection and SMD Plus; |
Camera-based AI | Face detection; facial recognition; perimeter protection; CMS Plus; ANPR; people counting; stereo analysis; heat map |
Perimeter protection | |
AI perimeter performance per recorder (number of channels) | 2 channels, 10 IVS rules for each channel |
AI camera perimeter performance (number of channels) | All channels (8 targets per second) |
Face detection | |
Facial features | gender; age group; glasses; expressions; face mask; beard |
AI perimeter performance per recorder (number of channels) | 1 channel (up to 12 face images per second per channel) |
AI face detection performance by camera (number of channels) | All channels (8 targets/s) |
Facial recognition | |
Facial database capacity | Up to 10 face databases containing 20,000 images, for a total capacity of 2.5 GB. Name, gender, date of birth, address, ID type and number, country, region, and state can be added to each face image. |
AI perimeter performance per recorder (number of channels) | 8 canaux FD (par caméra) + FR (par enregistreur), flux d’images : 12 images de visages/seconde 1 canal FD (par enregistreur) + FR (par enregistreur), flux vidéo : 12 images de visages/seconde |
AI facial recognition performance by camera (number of channels) | All channels (8 targets/s) |
SMD Plus | |
SMD Plus by Recorder | 4 channels: Secondary filtering for humans and motor vehicles, reducing false alarms caused by leaves, rain and changes in lighting conditions |
SMD Plus per camera | All channels (16 targets/second) |
Audio and video | |
IP camera input | 8 channels |
Network bandwidth | AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing |
Resolution | 16 MPs; 12 MPs; 8 MPs; 6 MPs; 5 MPs; 4 MPs; 3 MPs; 1080p; 960p; 720p; D1; CIF |
Decoding capability | AI disabled: 2 channels at 16 MP at 30 fps; 2 channels at 12 MP at 30 fps; 4 channels at 8 MP at 30 fps; 4 channels at 6 MP at 30 fps; 6 channels at 5 MP at 30 fps; 8 channels at 4 MP at 30 fps AI enabled: 1 channel 16 MP at 30 fps; 2 channels 12 MP at 30 fps; 3 channels 8 MP at 30 fps; 3 channels 6 MP at 30 fps; 4 channels 5 MP at 30 fps; 6 channels 4 MP at 30 fps; 8 channels 1080p at 30 fps |
Video output | 1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video source output for VGA and HDMI is configurable. |
Multi-screen display | Main screen: 1/4/8/9 Sub-screen: 1/4/8/9 |
Access to third-party cameras | Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon |
Standard compression | |
Video compression | Smart H.265+/H.265/Smart H.264+/H.264 |
Audio compression | G.711a; G.711u; PCM; G726 |
Network | |
Network protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP protocol; NTP; DHCP; DNS; SMTP; UPnP; IP filter; FTP; DDNS; SNMP; Alarm server; P2P; Automatic registration; IP search (supports IP cameras, DVRs, NVS, etc.) |
Access to mobile phones | iOS; Android |
Interoperability | ONVIF 22.06 (Profile T; Profile S; Profile G); Synthetic images; Software Development Kit (SDK) |
Browser | Chrome; IE9 and later versions; Firefox |
Recording Playback | |
Multi-channel playback | Up to 8 channels |
Recording mode | General, motion detection; intelligent; alarm |
Backup method | USB and network device |
Reading mode | Instant reading, general reading, event reading, tag reading, smart reading |
Alarm | |
General alarm | Motion detection; privacy masking; video loss; scene change; PIR alarm; external IPC alarm |
Fault alarm | Camera disconnection; storage error; disk full; intellectual property conflict; MAC conflict; connection locked; and cybersecurity exception |
Smart alarm | Face detection; facial recognition; perimeter protection; CMS Plus; people counting; stereo analysis; heat map |
Alarm connection | Record; snapshot; external alarm output IPC; audio; buzzer; record; presets; email |

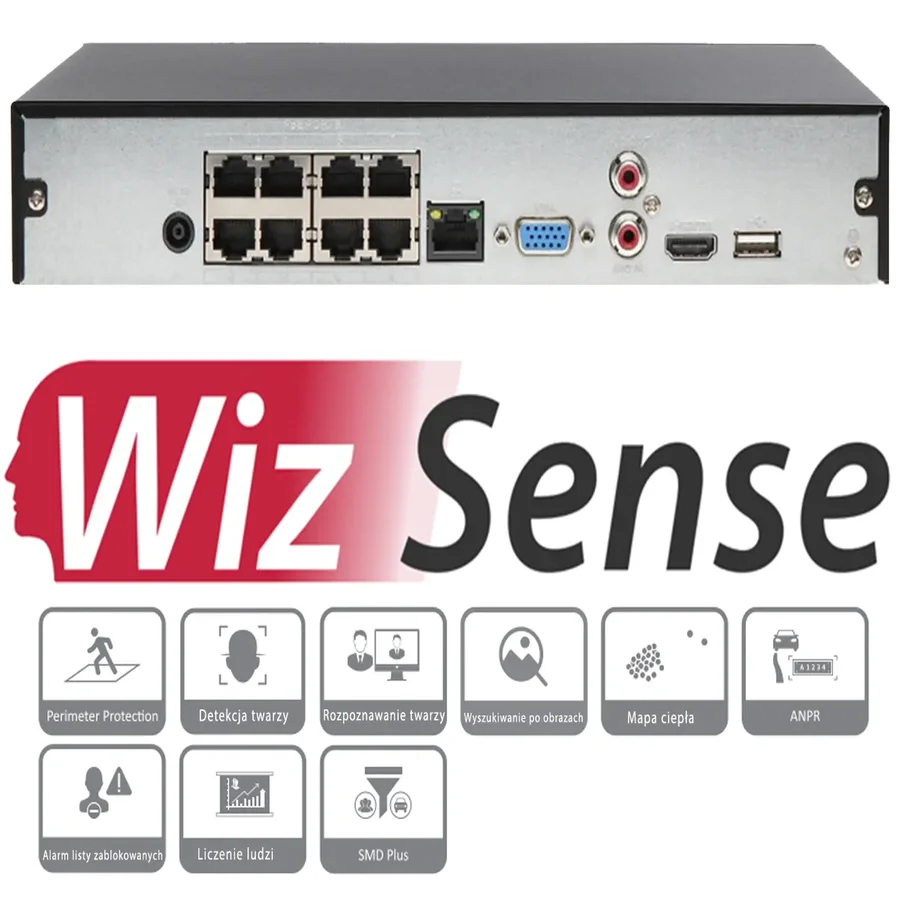

Port | |
Audio input | RCA 1 channel |
Audio output | RCA 1 channel |
Disk interface | 1 SATA port, up to 16 TB. The maximum capacity of the hard drive varies depending on the ambient temperature. |
USB | 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) |
HDMI | 1 |
VGA | 1 |
Network port | 1 (port Ethernet 10/100/1000 Mbps, RJ-45) |
Port PoE | 8 ports, 10/100 Mbps, IEEE 802.3 af/at |
General | |
Power supply | 53 VCC, 1 812 A |
Energy consumption | The total output power of the NVR is <10 W without a hard drive. The total output power of the PoE is 72 W maximum from a single port 25 5=‘’ td=””> |
Net weight | 0,92 kg (2,03 lb) |
Gross weight | 2,05 kg (4,52 lb) |

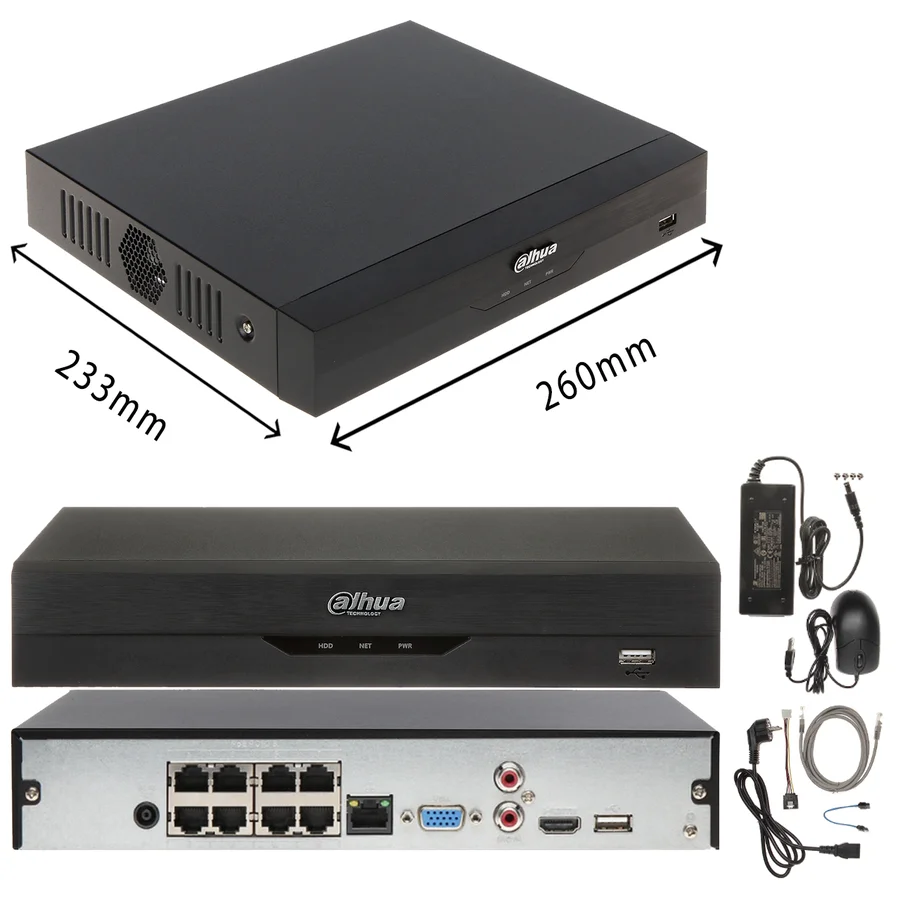

Product dimensions | 260,0 mm × 232,5 mm × 47,6 mm (10,24″ × 9,15″ × 1,87″) (L × P × H) |
Package dimensions | 374 mm × 119 mm × 311 mm (14,72″ × 4,69″ × 12,24″) (L × P × H) |
Operating temperature | –10 °C à +55 °C (14 °F à +131 °F) |
Storage temperature | –20 °C à +60 °C (–4 °F à +140 °F) |
Operating humidity | 10% to 93% (RH), non-condensing |
Installation | Rack or desk |
Certifications | FCC: 47 CFR FCC Part 15, Subpart B, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; FR 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014 |
